| उत्पत्ति के प्लेस: | हेबै |
|---|---|
| ब्रांड नाम: | Yuntong |
| प्रमाणन: | CE , SGS |
| मॉडल संख्या: | Yt-ff |
| न्यूनतम आदेश मात्रा: | 10 वर्गमीटर |
| मूल्य: | USD 2-50 |
| पैकेजिंग विवरण: | प्रत्येक टुकड़े के लिए पैकेज फिल्म, 1 कार्टन में पैक किए गए कई टुकड़े |
| प्रसव के समय: | 5-8 कार्य दिवस |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन, पेपैल |
| आपूर्ति की क्षमता: | 300 वर्गमीटर/सप्ताह |
| प्रोडक्ट का नाम: | एक्स-टेंड केबल मेष | मुख्य शब्द: | इस्पात रस्सी जाल |
|---|---|---|---|
| तार रस्सी: | 1.2 मिमी से 4.0 मिमी | जाल प्रकार: | भटके हुए |
| सामग्री: | उच्च ग्रेड AISI316 | रस्सी निर्माण: | 7 x 7, 7 x 19 |
| खत्म: | अल्ट्रासोनिक बाथ, ब्लैक ऑक्साइड | पैनल शीट: | चौड़ाई और लंबाई में अनुकूलित |
| प्रमुखता देना: | stainless steel indoor stair railings,50mm X Tend cable mesh,stair railing protection cable mesh |
||

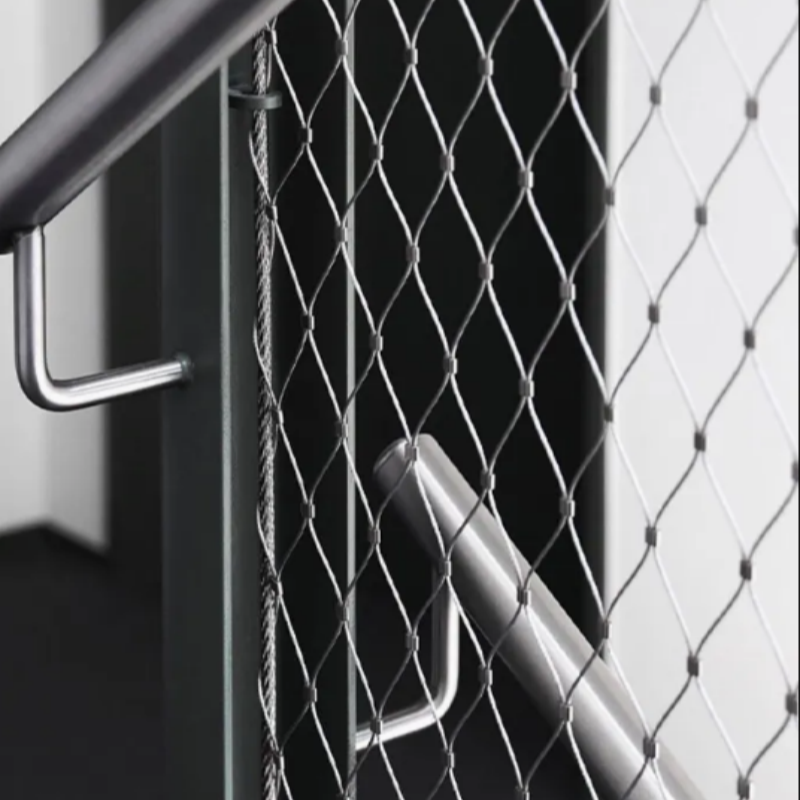

Stainless Steel 50mm X Tend Cable Mesh In Indoor Stair Railings Protection
X-TEND cable mesh needs to be secured in place with either border cables or perimeter tubes.

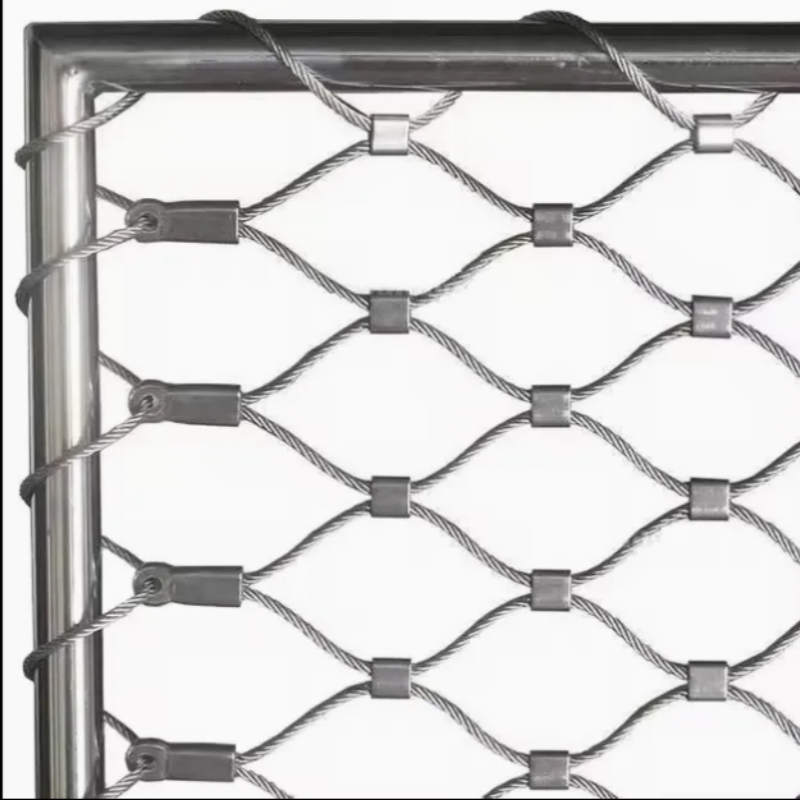

These transfer the force exerted around the complete perimeter of the flexible mesh panel to the supporting structure, balustrade or railing. Border cables deflect in response to this force adding unique and elegant form to the application. Where aesthetics demand a more linear or regular mesh panel free of deflection, then the mesh can be laced directly to a rod or tube frame.
We provides balustrade assemblies with the cable mesh preinstalled on stainless steel frames. Webnet Mesh is available in rectangular or rhomboid form in different sizes and mesh widths. Special assembly kits make installation easy.
X Tend Cable Mesh Specifications Sheet :
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Generally, there are two types of buckle: one is closed-type buckle and the other is open-type buckle. Features of closed type: the mesh has multiple steel wire ropes combined together, and the closed buckle is relatively stronger, but there are multiple joints at one end of the closure. Open-type features: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.
